A 3D seismic program completed during FY2015 identified a number of potential targets down dip and along strike of known
resources. A total of 187 AC holes (7,034m), 49 RC holes (6,822m) and 44 diamond holes (11,009m) was completed in FY2015
targeting down dip extensions to mineralisation at Tropicana, Havana North and Havana South. Better results include 12m @
1.79g/t Au and 5m @ 5.25g/t Au at Havana North, 8m @ 3.48g/t Au at Crouching Tiger and 19m @ 1.19g/t Au in the Tropicana
Extensions area.

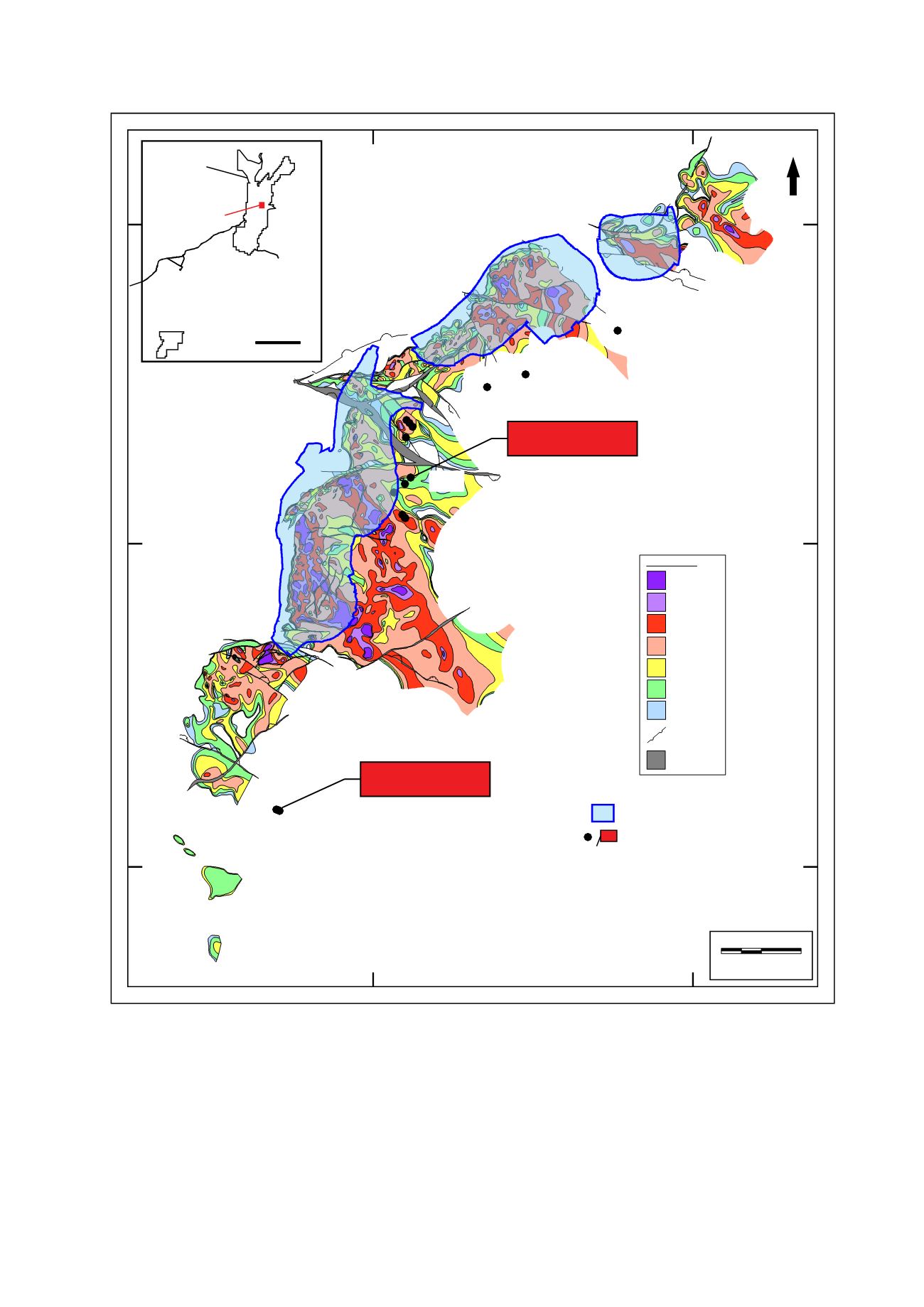

Figure 6: Tropicana Gold Mine
Note: See June 2015 Quarterly Report released to ASX on 29 July 2015
